BEETLE
Lightweight and cost-sensitive two-axis gimbal platform for smaller payloads, test platforms and early stratospheric mission development.
Compact, Cost-Sensitive, Configurable
BEETLE is a compact two-axis gimbal platform developed for smaller payload classes, test flights, technology demonstrations and cost-sensitive stratospheric or aerospace-adjacent applications. It shares the same development philosophy as PATRON — modular, configurable and designed with integration constraints in mind — but targets a different payload class and mission profile.
The platform is developed for customers who need two-axis pointing and stabilization without the full mass and power budget of a larger system. BEETLE is a valid starting point for early validation, R&D missions, university payloads and compact optical or sensor systems where mass, volume and cost are the primary constraints.
Like all Hikade Technologies platforms, BEETLE is not a fixed catalog product. The payload interface, control architecture and integration approach are adapted to the specific mission and platform requirements.
STATUS: BEETLE is a development / demonstration platform. Parameters may vary depending on configuration and validation scope. The system is not presented as flight-proven unless explicitly validated.

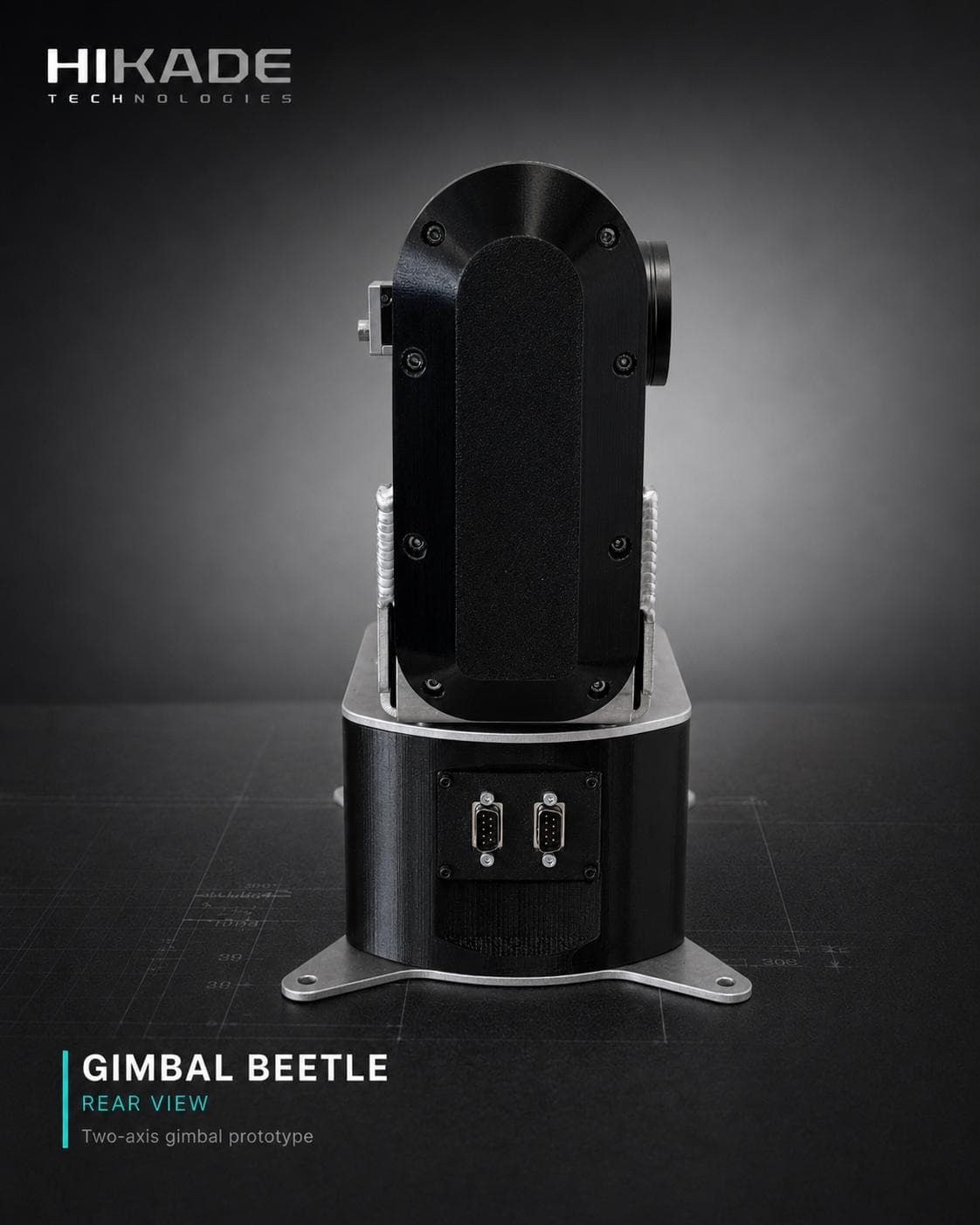

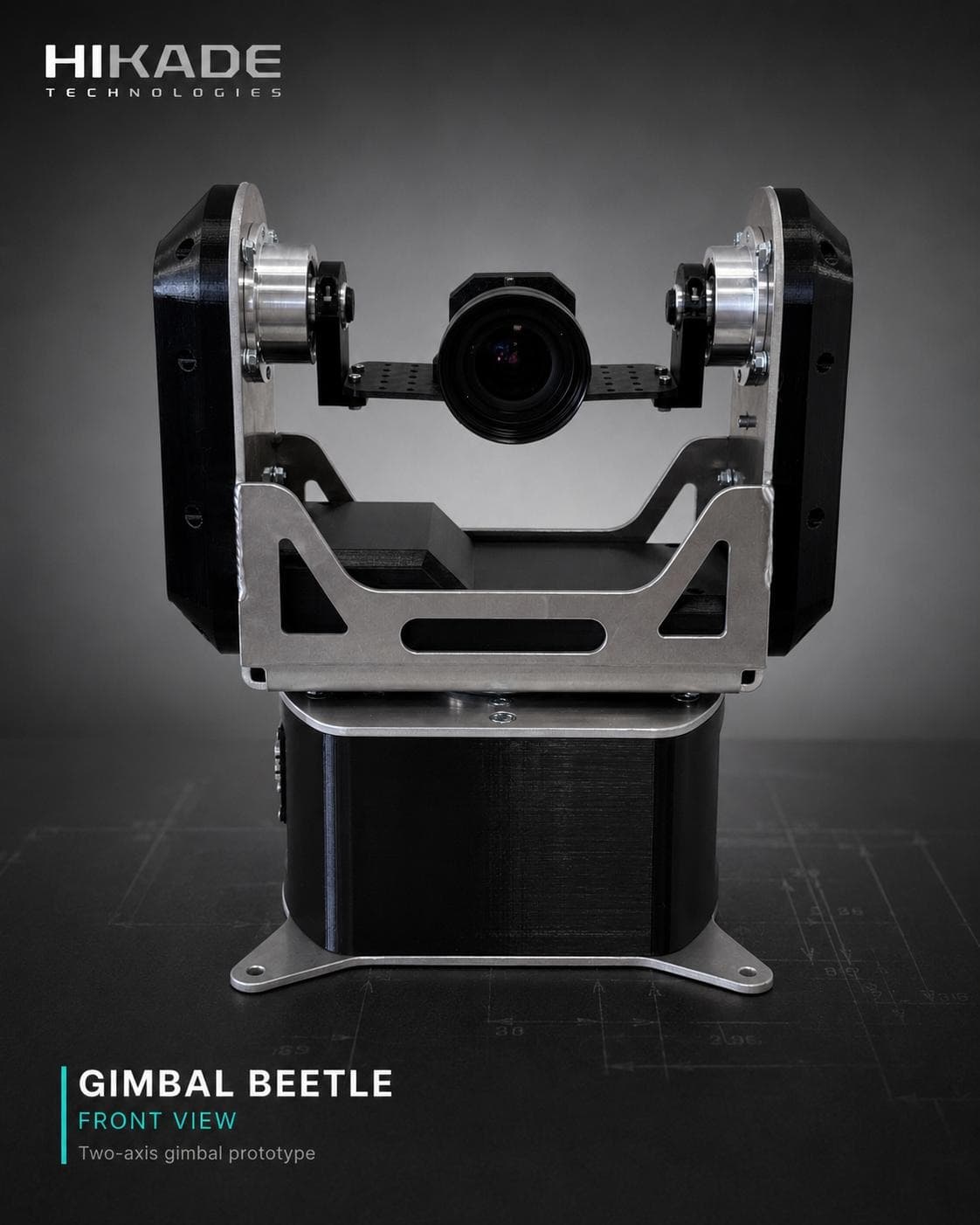

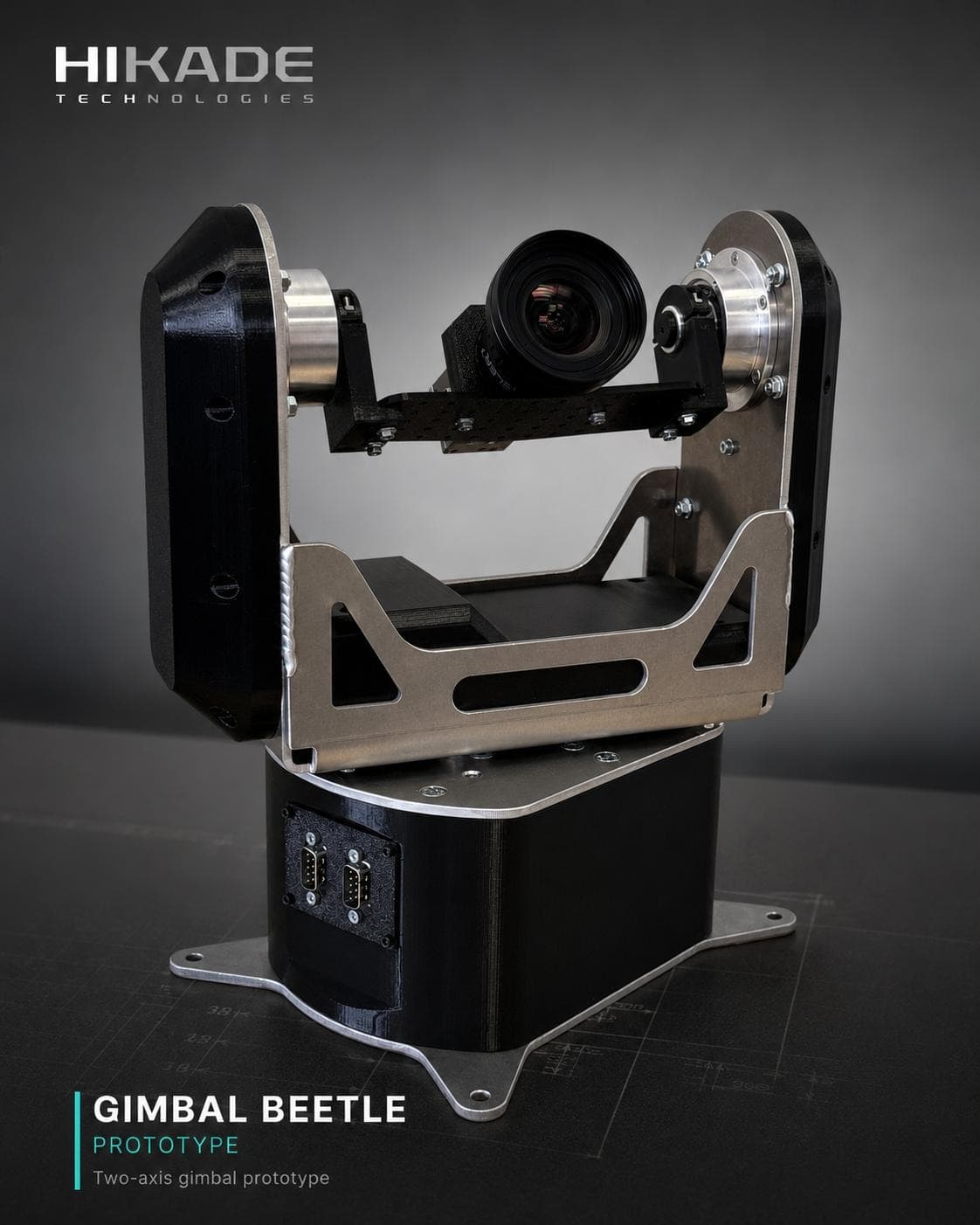

PROTOTYPE HARDWARE
BEETLE — Technical Specifications
Target Applications
| Parameter | Target / Typical Value | Note |
|---|---|---|
| Platform type | Two-axis lightweight gimbal | Configurable |
| Application | Smaller HAPS / balloon payloads | Customer-specific |
| Payload capacity | up to approx. 4.5 kg | Depending on configuration |
| System mass | approx. 2.5 kg | Depending on configuration |
| Nominal power | approx. 30 W | Mission-profile dependent |
| Peak power | approx. 150 W | Movement-profile dependent |
| Number of axes | 2 | Azimuth + elevation |
| Target use | Demonstration / R&D / early validation | Not for series production |
| Status | Development / demonstration platform | Not flight-proven unless validated |
Parameters may vary depending on configuration, customer requirements and validation scope.
Use BEETLE as a configurable starting point
Use BEETLE as a configurable starting point for lightweight payload stabilization and early stratospheric mission development. Define your payload envelope, platform interface and pointing requirements with us.
